BoxShadow¶

New in version 2.2.0.

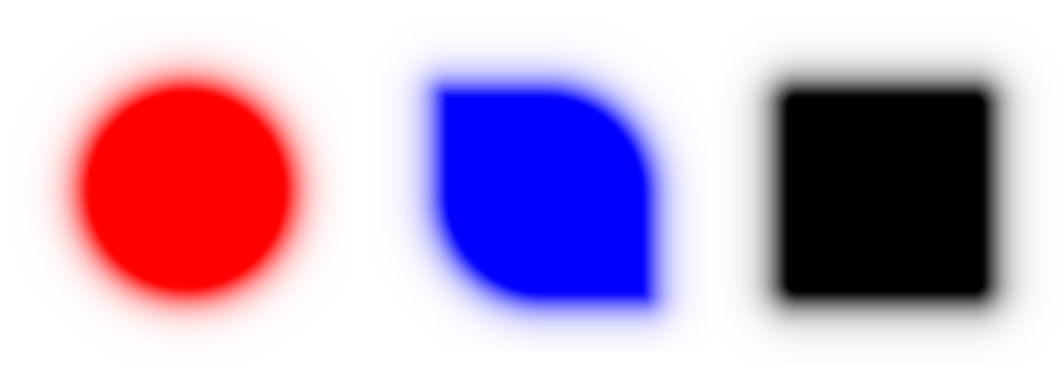

BoxShadow is a graphical instruction used to add a shadow effect to an element.

Its behavior is similar to the concept of a CSS3 box-shadow.

The BoxShadow declaration must occur inside a Canvas statement. It works similarly to other graphical instructions such as Rectangle, RoundedRectangle, etc.

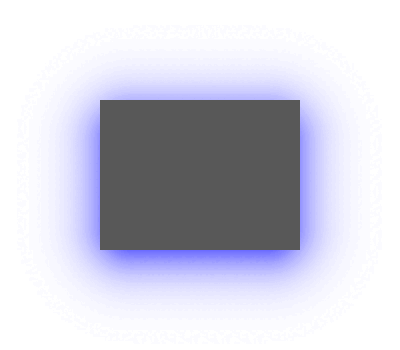

Example:¶

<MyWidget>:
    Button:
        pos_hint: {"center_x": 0.5, "center_y": 0.5}
        size_hint: None, None
        size: 200, 150
        background_down: self.background_normal
        canvas.before:
            Color:
                rgba: 0, 0, 1, 0.85
            BoxShadow:
                pos: self.pos
                size: self.size
                offset: 0, -10
                spread_radius: -20
                border_radius: 10, 10, 10, 10
                blur_radius: 80 if self.state == "normal" else 50

class kivy.graphics.boxshadow.BoxShadow(*args, **kwargs)¶

Bases: kivy.graphics.fbo.Fbo

New in version 2.2.0.

Parameters:

size: list | tuple, defaults to (100.0, 100.0).: Define the raw size of the shadow, that is, you should not take into account changes in the value of blur_radius and spread_radius properties when setting this parameter.
pos: list | tuple, defaults to (0.0, 0.0).: Define the raw position of the shadow, that is, you should not take into account changes in the value of the offset property when setting this parameter.
offset: list | tuple, defaults to (0.0, 0.0).: Specifies shadow offsets in (horizontal, vertical) format. Positive values for the offset indicate that the shadow should move to the right and/or top. The negative ones indicate that the shadow should move to the left and/or down.
blur_radius: float, defaults to 5.0.: Define the shadow blur radius. Controls shadow expansion and softness.
spread_radius: float, defaults to 0.0.: Define the decrease/expansion of the shadow’s raw size.
border_radius: list | tuple, defaults to (0.0, 0.0, 0.0, 0.0).: Specifies the radii used for the rounded corners clockwise: top-left, top-right, bottom-right, bottom-left.

blur_radius¶

Define the shadow blur radius. Controls shadow expansion and softness.

Defaults to 5.0.

In the image below, the start and end positions of the shadow blur effect length are indicated. The transition between color and transparency is seamless, and although the shadow appears to end before the red rectangle, its edge is made to be as smooth as possible.

Note

In some cases (if this is not your intention), placing an element above the shadow (before the blur radius ends) will result in a unwanted cropping/overlay behavior rather than continuity, breaking the shadow’s soft ending, as shown in the image below.

border_radius¶

Specifies the radii used for the rounded corners clockwise: top-left, top-right, bottom-right, bottom-left.

Defaults to (0.0, 0.0, 0.0, 0.0).

offset¶

Specifies shadow offsets in [horizontal, vertical] format. Positive values for the offset indicate that the shadow should move to the right and/or top. The negative ones indicate that the shadow should move to the left and/or down.

Defaults to (0.0, 0.0).

For this property to work as expected, it is indicated that the value of pos coincides with the position of the target element of the shadow, as in the example below:

pos¶

Define the raw position of the shadow, that is, you should not take into account changes in the value of the offset property when setting this property.

Returns the adjusted position of the shadow according to the adjusted size of the shadow and offset property.

Defaults to (0.0, 0.0).

Note

It is recommended that this property matches the raw position of the shadow target element. To manipulate horizontal and vertical offset, use offset instead.

size¶

Define the raw size of the shadow, that is, you should not take into account changes in the value of blur_radius and spread_radius properties.

Returns the adjusted size of the shadow according to the blur_radius and spread_radius properties.

Defaults to (100.0, 100.0).

Note

It is recommended that this property matches the raw size of the shadow target element. To manipulate the decrease/expansion of the shadow’s raw size, use spread_radius instead.

spread_radius¶

Define the decrease/expansion of the shadow’s inner size.

Defaults to 0.0.

In the image below, the target element has a raw size of 200 x 150px. Positive changes to the spread_radius value will cause the raw size of the shadow to increase in both horizontal and vertical directions, while negative values will cause the shadow to decrease.

This property is especially useful for cases where you want to achieve a softer shadow around the element, by setting a negative value for spread_radius and a larger value for blur_radius as in the example.
